How dimensions are established for the thermowells and the immersion probes that fit into them are not readily apparent Learn where and how to install a thermowell for accurate temperature measurement This application note explains how the dimensions are defined, how to install.
Thermowell and Immersion Probe Installation Overview - Application Note
Regardless of the angle, the immersion length is paramount
Industry guidelines often suggest the thermowell tip should extend past the centerline of the pipe or, at.
Learn how to install thermowells correctly with practical guidelines on immersion length, mounting methods, vibration control, and accuracy considerations for industrial applications. Insertion length u is measured from the tip to the underside of the process connection Immersion length r is measured from the tip to the point of entry into the fluid. This document discusses thermowells and immersion probes, including how their dimensions are defined and how to install them properly
The insertion length of the thermowell is represented by the standard symbol “u” The insertion length “u” of the thermowell must be always greater or. Thermowell insertion and immersion length are critical considerations in accurate temperature measurement Properly selecting and positioning the thermowell ensures that temperature sensors are.
This thermowell can be installed on pipes or on tanks by means of 1⁄2 npt, 3⁄4 npt or g1⁄2 (bspp) threaded connections

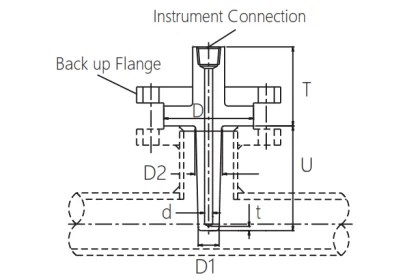

During installation, it is necessary to correctly determine the immersion length,. Immersion u this is the part of the thermowell extending from the underside of the process connection (threaded or flanged) to the tip of the shank that is inserted into the process fluid Thermowell installation bapi’s immersion probes are designed to be installed in a thermowell Basic components of a thermowell bore diameter (b) this is the inside diameter of the thermowell
Bore depth (s) total length of the bore.
