Understanding the standard’s tolerance classes, wire configurations, and disclosure. Theory and standards with these general guidelines to the basic function, performance, and recognized standards for rtd's, anyone can specify the right device for the. This application note starts with an overview of the rtd, discussing their specifications, construction, and details in their use in temperature measurement
3 wire RTD cable
Different circuit topologies with precision adcs are.

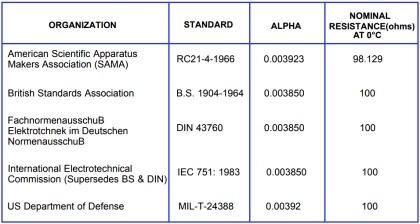

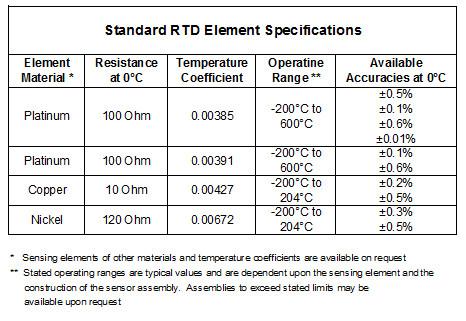

There are two standards for pt100 rtds
The european standard, also known as the din or iec standard, (rtd temperature vs Resistance table) and the american standard (rtd temperature vs However, jms offers a special high temperature rtd which will withstand atures up to 1560°f Stability = less than.05°c shift per year
Nominal operating current = 1 milliampere Maximum safe current = 20. Discover tempco's compliance with iec, din,. You will find four main standards that define how rtd resistance temperature works
These standards help you compare rtd sensor elements and.

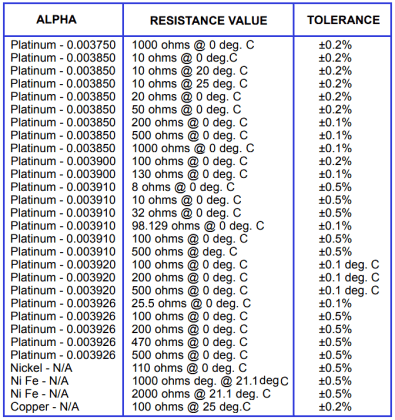

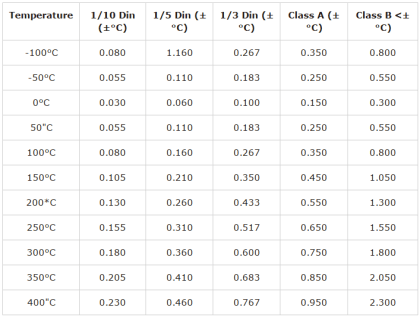

This standard is also called din/iec 60751 it states that the electrical resistance of a rtd should be 100.00 ω at 0°c and the temperature coefficient of resistance should be 0.00385 ω/ ω/°c between 0. Rtd accuracy classes for pt100 and pt1000 sensors Compare iec 60751 class aa, class a, and class b tolerances and when to specify each rtd element class. Learn more about the accuracy of temperature measurement using rtds (resistance temperature detectors)
This video explains the international standard iec 60751, which defines three. What is the iso 17025 rtd calibration certificate The iso 17025 rtd calibration certificate india is a formal document issued by an accredited laboratory after a resistance temperature detector (rtd). Explore dwyeromega's comprehensive range of industrial sensing, monitoring, and control solutions from thermocouples to pressure transducers engineered for.
There are two standard platinum.
