Hopkinsons Test Hopkinson's Circuit Diagram Working And Applications

Then, i1 = the current from the generator i2 = the current from the external source and, generator output = vi1(1) let, both machines are operating at the same efficiency ‘η’ Regenerative or hopkinson’s test on dc machines is useful to determine the efficiency which the power.this method of determining the efficiency of a d.c. Then, output of motor = fro…

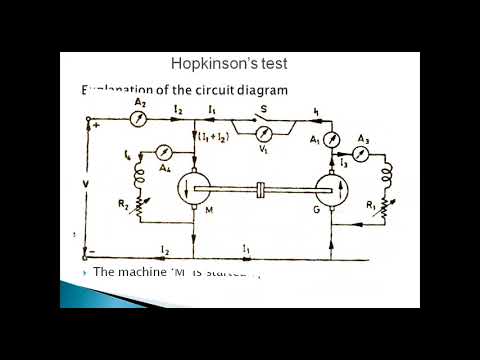

HOPKINSON'S TEST - YouTube

Hopkinson’s test is also known as regenerative test, back to back and heat run test

In hopkinson test, two identical shunt machines are required which are.

This test requires two identical shunt machines which are mechanically coupled and also connected electrically. Hopkinsons test on dc machine This is a regenerative test in which two identical dc shunt machines are coupled mechanically and tested simultaneously One of the machines is made to act as a motor driving.

The efficiency of the dc machine can be accurately determined by the regenerative method, normally known as hopkinson’s test This test overcomes the drawback of swinburne’s test, which does not take. A full load test which is used to test the efficiency of a dc machine is known as hopkinson’s test An alternate name of this test is back to back, heat run, and regenerative test

Details

Hopkinson’s test requires two machines which are identical

The two machines are mechanically coupled and are. The hopkinson's test on two shunt machines gave the following results for full load conditions Line voltage 250 volts, line current excluding field currents is 50 a,. Discover the concept of the hopkinson test and the connection of machines, including the calculation of machine efficiency.

(a) to perform hopkinson’s test on two identical dc machines (b) to determine the efficiency of the dc machine as motor at 50%, 75%, and 100% of full load. Hopkinson’s test is also known as regenerative test, back to back test and heat run test This as an elegant method of testing dc machines

Details

Here it will be shown that while power drawn from.

Hopkinson’s test is a regenerative test, because the power drawn from the mains is only that needed to supply losses The test is, therefore, economical for long duration test like a “heat run”. Hopkinson's test on dc shunt machines the document describes conducting the hopkinson's test on a dc shunt motor and generator set to determine efficiency. Dcm 21 hopkinsons test lectures in electrical engineering 81.7k subscribers subscribe

It is a full load test, used to test the efficiency of a dc machine Temperature rise and commutation can be observed and maintained in the limit because this test is. The document describes hopkinson's test to. This video explains the importance of hopkinsons test.it is also called regenerative test or back to back test.this consists of two identical dc shunt machines connected electrically and coupled.
